SK Hynix H5MS5162EFR-J3M
Memphis is a specialized memory-distributor carrying over 20 manufacturers including Samsung, Nanya, Hynix and many more. See our full linecard.
With 16 sales offices around the world and three warehouses, Memphis supplies all kinds of memory components such as
DRAM, SRAM, NOR/NAND Flash, eMMC as well as memory modules, SSDs and Flash-cards.
Please contact us for any demands related to memory!
Leadtime
in stock
in Stock
yes
Status
EOL
Manufacturer
SK Hynix
Technology
LPDDR1
Capacity
512Mb
Organization
32Mx16
Bus-Width
x16
Package
BGA
Pin/Ball Count
60
Voltage
1.8V
Max. Clock-Speed
200 MHz
Max. Data-Rate
400 MT/s
Temperature Range
-30 to 85°C TA
Automotive
No
RoHS-Compliant
Yes
HTN Code
85423231
ECCN Code
EAR99

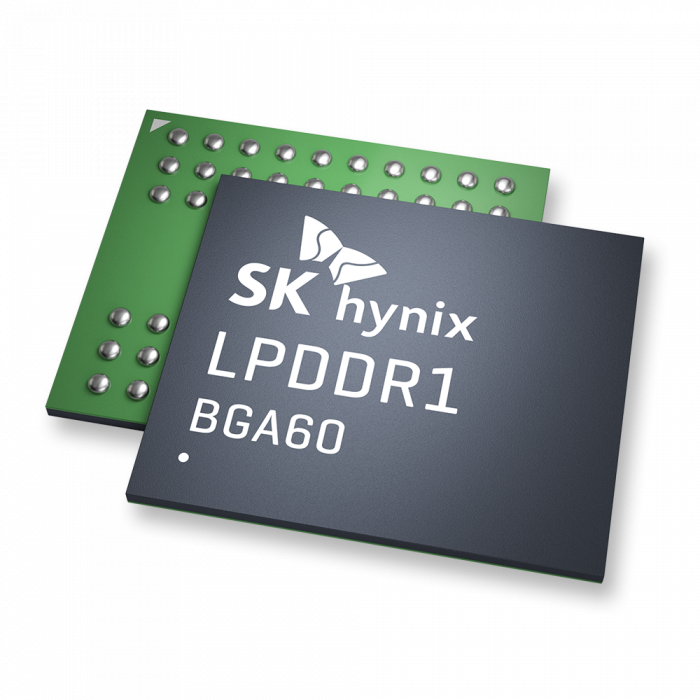

The H5MS5162EFR-J3M is a LPDDR1 DRAM memory manufactured by SK Hynix made for an operating temperature of -30 to 85°C TA. It has a memory-capacity of 512Mb and is organized as 32Mx16 coming in a RoHS-compliant BGA 60 ball package. The data-rate is specified with 400 MT/s reflecting a max clock-speed of 200 MHz and a minimum clock cycle time of . The product is End of Life (EOL) and not re-orderable. Please contact us to receive our recommendations for replacement parts or newer versions.
Please contact us to request a quote or free samples.
