Samsung K4AAG165WA-BITD
Memphis is a specialized memory-distributor carrying over 20 manufacturers including Samsung, Nanya, Hynix and many more. See our full linecard.
With 16 sales offices around the world and three warehouses, Memphis supplies all kinds of memory components such as
DRAM, SRAM, NOR/NAND Flash, eMMC as well as memory modules, SSDs and Flash-cards.
Please contact us for any demands related to memory!
Leadtime
in stock
in Stock
no
Status
active
Manufacturer
Samsung
Technology
DDR4
Capacity
16Gb
Organization
1Gx16
Bus-Width
x16
Package
BGA
Pin/Ball Count
96
Voltage
1.2V
Min. Cycle Time
0.75ns
Max. Clock-Speed
1333 MHz
Max. Data-Rate
2666 MT/s
Temperature Range
-40 to 95°C TC
Automotive
No
RoHS-Compliant
Yes
HTN Code
85423239
ECCN Code
EAR99
SPQ Reel
2000 pcs
SPQ Tray Box
1280 pcs
SPQ Tray
128 pcs

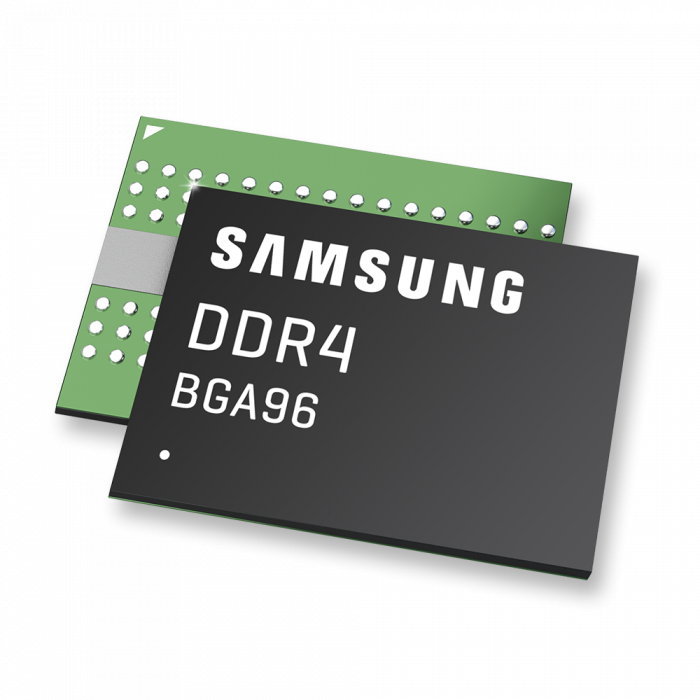

The K4AAG165WA-BITD is a DDR4 DRAM memory manufactured by Samsung made for an operating temperature of -40 to 95°C TC. It has a memory-capacity of 16Gb and is organized as 1Gx16 coming in a RoHS-compliant BGA 96 ball package. The data-rate is specified with 2666 MT/s reflecting a max clock-speed of 1333 MHz and a minimum clock cycle time of 0.75ns. The product is active and can be ordered from Memphis at any time.
Please contact us to request a quote or free samples.
