Samsung K4B8G0846D-MYK0
Memphis is a specialized memory-distributor carrying over 20 manufacturers including Samsung, Nanya, Hynix and many more. See our full linecard.
With 16 sales offices around the world and three warehouses, Memphis supplies all kinds of memory components such as
DRAM, SRAM, NOR/NAND Flash, eMMC as well as memory modules, SSDs and Flash-cards.
Please contact us for any demands related to memory!
Leadtime
in stock
in Stock
yes
Status
EOL
Manufacturer
Samsung
Technology
DDR3L
Capacity
8Gb
Organization
1Gx8
Bus-Width
x8
Package
BGA DDP
Pin/Ball Count
78
Voltage
1.35/1.5V
Min. Cycle Time
1.25ns
Max. Clock-Speed
800 MHz
Max. Data-Rate
1600 MT/s
Temperature Range
0 to 95°C TC
Automotive
No
RoHS-Compliant
Yes
HTN Code
85423239
ECCN Code
EAR99
SPQ Reel
2000 pcs
SPQ Tray Box
1280 pcs
SPQ Tray
128 pcs

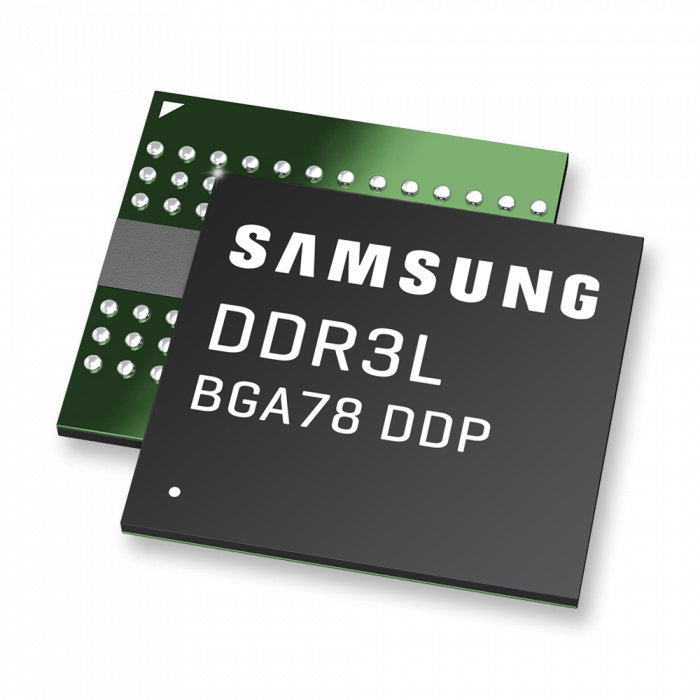

The K4B8G0846D-MYK0 is a DDR3L DRAM memory manufactured by Samsung made for an operating temperature of 0 to 95°C TC. It has a memory-capacity of 8Gb and is organized as 1Gx8 coming in a RoHS-compliant BGA DDP 78 Pins package. The data-rate is specified with 1600 MT/s reflecting a max clock-speed of 800 MHz and a minimum clock cycle time of 1.25ns. The product is End of Life (EOL) and not re-orderable. Please contact us to receive our recommendations for replacement parts or newer versions.
Please contact us to request a quote or free samples.
