Samsung K4E6E304EC-EGCF
Memphis is a specialized memory-distributor carrying over 20 manufacturers including Samsung, Nanya, Hynix and many more. See our full linecard.
With 16 sales offices around the world and three warehouses, Memphis supplies all kinds of memory components such as
DRAM, SRAM, NOR/NAND Flash, eMMC as well as memory modules, SSDs and Flash-cards.
Please contact us for any demands related to memory!
Leadtime
in stock
in Stock
no
Status
EOL
Manufacturer
Samsung
Technology
LPDDR3
Capacity
16Gb
Organization
512Mx32
Bus-Width
x32
Package
BGA
Pin/Ball Count
178
Voltage
VDD1:1.8V/VDD2:1.2V/VDDQ:1.2V
Min. Cycle Time
1.072ns
Max. Clock-Speed
933 MHz
Max. Data-Rate
1866 MT/s
Temperature Range
-25 to 85°C TC
Automotive
No
RoHS-Compliant
Yes
HTN Code
85423239
ECCN Code
EAR99
SPQ Reel
2000 pcs
SPQ Tray
112 pcs

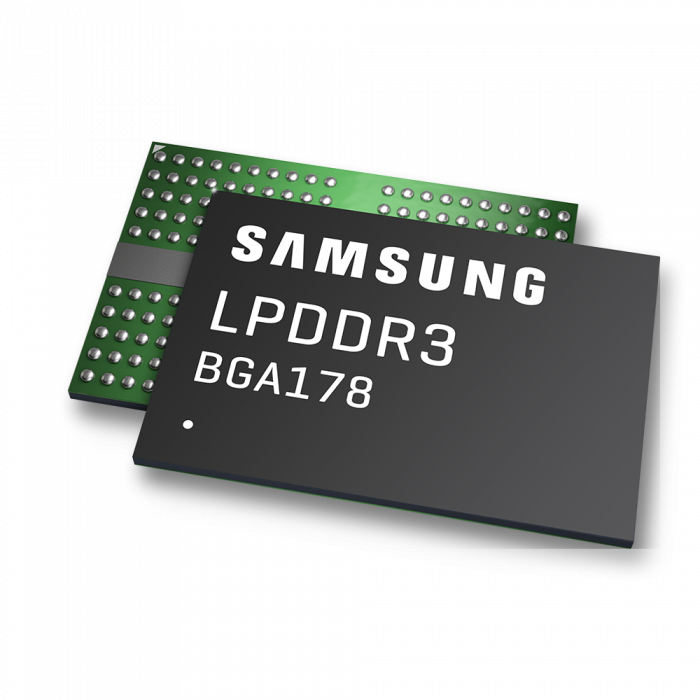

The K4E6E304EC-EGCF is a LPDDR3 DRAM memory manufactured by Samsung made for an operating temperature of -25 to 85°C TC. It has a memory-capacity of 16Gb and is organized as 512Mx32 coming in a RoHS-compliant BGA 178 ball package. The data-rate is specified with 1866 MT/s reflecting a max clock-speed of 933 MHz and a minimum clock cycle time of 1.072ns. The product is End of Life (EOL) and not re-orderable. Please contact us to receive our recommendations for replacement parts or newer versions.
Please contact us to request a quote or free samples.
