Samsung K4H561638F-UCCC
Memphis is a specialized memory-distributor carrying over 20 manufacturers including Samsung, Nanya, Hynix and many more. See our full linecard.
With 16 sales offices around the world and three warehouses, Memphis supplies all kinds of memory components such as
DRAM, SRAM, NOR/NAND Flash, eMMC as well as memory modules, SSDs and Flash-cards.
Please contact us for any demands related to memory!
Leadtime
in stock
in Stock
yes
Status
EOL
Manufacturer
Samsung
Technology
DDR1
Capacity
256Mb
Organization
16Mx16
Bus-Width
x16
Package
TSOP
Pin/Ball Count
66
Voltage
2.5V
Min. Cycle Time
5ns
Max. Clock-Speed
200 MHz
Max. Data-Rate
400 MT/s
Temperature Range
0 to 70°C TA
Automotive
No
RoHS-Compliant
Yes
HTN Code
85423239
ECCN Code
EAR99

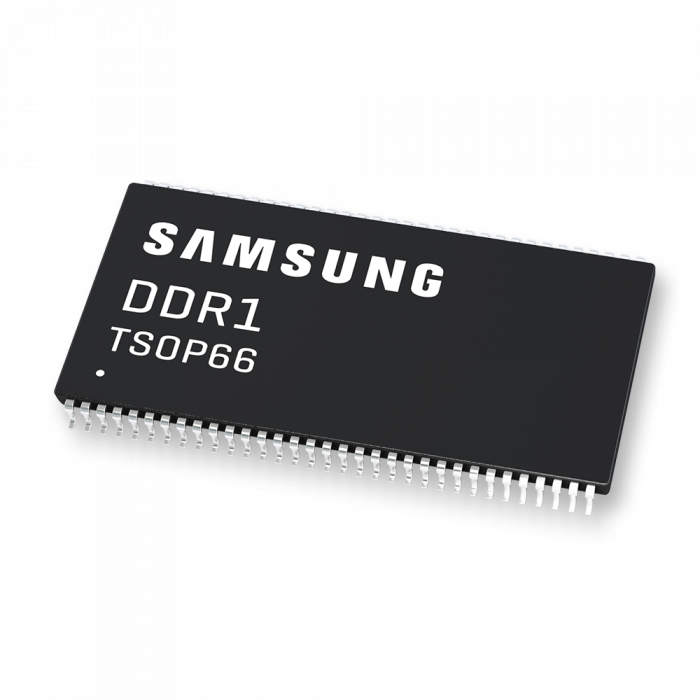

The K4H561638F-UCCC is a DDR1 DRAM memory manufactured by Samsung made for an operating temperature of 0 to 70°C TA. It has a memory-capacity of 256Mb and is organized as 16Mx16 coming in a RoHS-compliant TSOP 66 Pins package. The data-rate is specified with 400 MT/s reflecting a max clock-speed of 200 MHz and a minimum clock cycle time of 5ns. The product is End of Life (EOL) and not re-orderable. Please contact us to receive our recommendations for replacement parts or newer versions.
Please contact us to request a quote or free samples.
