Micron MT53E1536M32D4DT-046 WT:A
Memphis is a specialized memory-distributor carrying over 20 manufacturers including Samsung, Nanya, Hynix and many more. See our full linecard.
With 16 sales offices around the world and three warehouses, Memphis supplies all kinds of memory components such as
DRAM, SRAM, NOR/NAND Flash, eMMC as well as memory modules, SSDs and Flash-cards.
Please contact us for any demands related to memory!
Leadtime
in stock
in Stock
yes
Status
active
Manufacturer
Micron
Technology
LPDDR4/X
Capacity
48Gb
Organization
1.5Gx32
Bus-Width
x32
Package
BGA QDP
Pin/Ball Count
200
Voltage
VDD1:1.8V/VDD2:1.1V/VDDQ:1.1V or 0.6V
Min. Cycle Time
0.469ns
Max. Clock-Speed
2133 MHz
Max. Data-Rate
4266 MT/s
Temperature Range
-30 to 85°C TC
Automotive
No
RoHS-Compliant
Yes
HTN Code
85423239
ECCN Code
EAR99
SPQ Reel
2000 pcs
SPQ Tray Box
1280 pcs
SPQ Tray
128 pcs

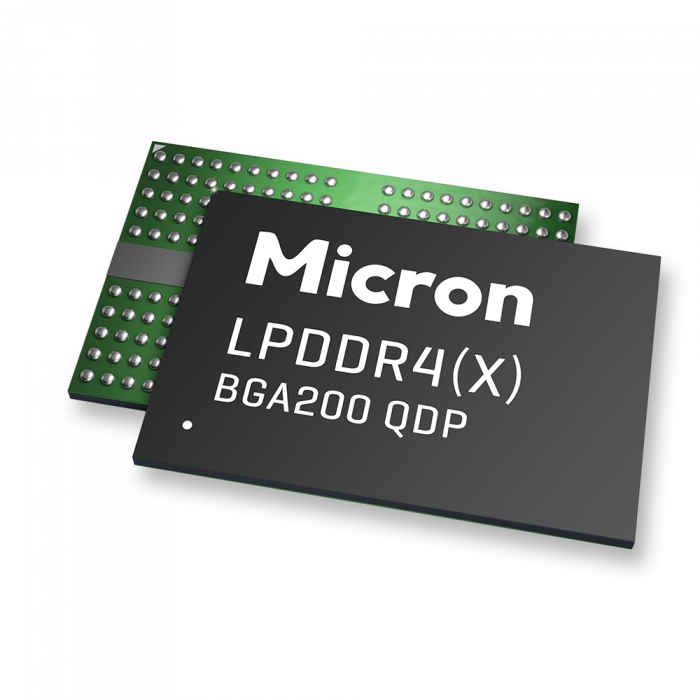

The MT53E1536M32D4DT-046 WT:A is a LPDDR4/X DRAM memory manufactured by Micron made for an operating temperature of -30 to 85°C TC. It has a memory-capacity of 48Gb and is organized as 1.5Gx32 coming in a RoHS-compliant BGA QDP 200 Pins package. The data-rate is specified with 4266 MT/s reflecting a max clock-speed of 2133 MHz and a minimum clock cycle time of 0.469ns. The product is active and can be ordered from Memphis at any time.
Please contact us to request a quote or free samples.
