Nanya NT5SV16M16CS-6KI
Memphis is a specialized memory-distributor carrying over 20 manufacturers including Samsung, Nanya, Hynix and many more. See our full linecard.
With 16 sales offices around the world and three warehouses, Memphis supplies all kinds of memory components such as
DRAM, SRAM, NOR/NAND Flash, eMMC as well as memory modules, SSDs and Flash-cards.
Please contact us for any demands related to memory!
Leadtime
in stock
in Stock
yes
Status
EOL
Manufacturer
Nanya
Technology
SDRAM
Capacity
256Mb
Organization
16Mx16
Bus-Width
x16
Package
TSOP
Pin/Ball Count
54
Voltage
3.3V
Min. Cycle Time
6.024ns
Max. Clock-Speed
166 MHz
Temperature Range
-40 to 85°C TA
Automotive
No
RoHS-Compliant
Yes
HTN Code
85423231
ECCN Code
EAR99

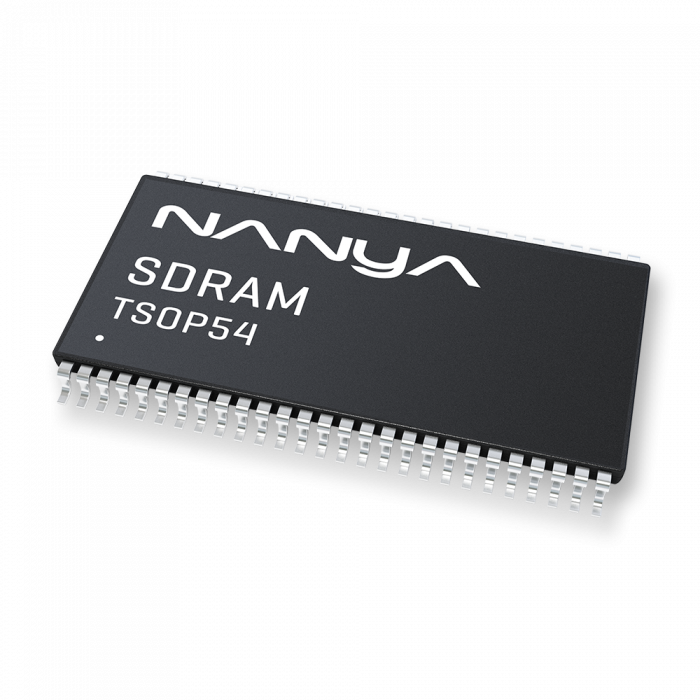

The NT5SV16M16CS-6KI is a SDRAM DRAM memory manufactured by Nanya made for an operating temperature of -40 to 85°C TA. It has a memory-capacity of 256Mb and is organized as 16Mx16 coming in a RoHS-compliant TSOP 54 Pins package. The max clock-speed is specified with 166 MHz and a minimum clock cycle time of 6.024ns. The product is End of Life (EOL) and not re-orderable. Please contact us to receive our recommendations for replacement parts or newer versions.
Please contact us to request a quote or free samples.
