Nanya NT6CL512F64A4-H1
Memphis is a specialized memory-distributor carrying over 20 manufacturers including Samsung, Nanya, Hynix and many more. See our full linecard.
With 16 sales offices around the world and three warehouses, Memphis supplies all kinds of memory components such as
DRAM, SRAM, NOR/NAND Flash, eMMC as well as memory modules, SSDs and Flash-cards.
Please contact us for any demands related to memory!
Leadtime
in stock
in Stock
no
Status
EOL
Manufacturer
Nanya
Technology
LPDDR3
Capacity
32Gb
Organization
512Mx64
Bus-Width
x64
Package
BGA QDP
Pin/Ball Count
256
Voltage
VDD1:1.8V/VDD2:1.2V/VDDQ:1.2V
Min. Cycle Time
1.072ns
Max. Clock-Speed
933 MHz
Max. Data-Rate
1866 MT/s
Temperature Range
-30 to 105°C TC
Automotive
No
RoHS-Compliant
Yes
HTN Code
85423239
ECCN Code
EAR99
SPQ Tray Box
1260 pcs
SPQ Tray
126 pcs

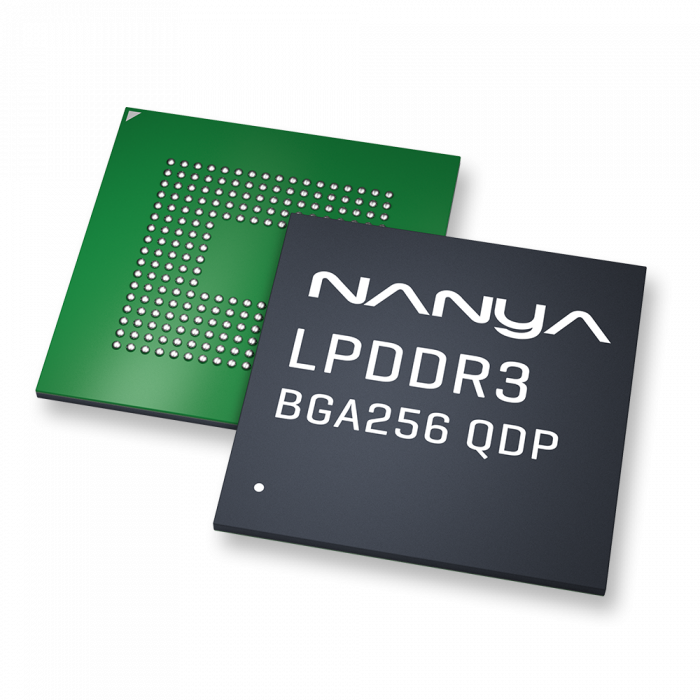

The NT6CL512F64A4-H1 is a LPDDR3 DRAM memory manufactured by Nanya made for an operating temperature of -30 to 105°C TC. It has a memory-capacity of 32Gb and is organized as 512Mx64 coming in a RoHS-compliant BGA QDP 256 Pins package. The data-rate is specified with 1866 MT/s reflecting a max clock-speed of 933 MHz and a minimum clock cycle time of 1.072ns. The product is End of Life (EOL) and not re-orderable. Please contact us to receive our recommendations for replacement parts or newer versions.
Please contact us to request a quote or free samples.
