Nanya NT6DM16M32BC-T1
Memphis is a specialized memory-distributor carrying over 20 manufacturers including Samsung, Nanya, Hynix and many more. See our full linecard.
With 16 sales offices around the world and three warehouses, Memphis supplies all kinds of memory components such as
DRAM, SRAM, NOR/NAND Flash, eMMC as well as memory modules, SSDs and Flash-cards.
Please contact us for any demands related to memory!
Leadtime
in stock
in Stock
yes
Status
EOL
Manufacturer
Nanya
Technology
LPDDR1
Capacity
512Mb
Organization
16Mx32
Bus-Width
x32
Package
BGA
Pin/Ball Count
90
Voltage
1.8V
Min. Cycle Time
5ns
Max. Clock-Speed
200 MHz
Max. Data-Rate
400 MT/s
Temperature Range
-25 to 85°C TA
Automotive
No
RoHS-Compliant
Yes
HTN Code
85423231
ECCN Code
EAR99
SPQ Reel
1000 pcs
SPQ Tray Box
1900 pcs
SPQ Tray
190 pcs

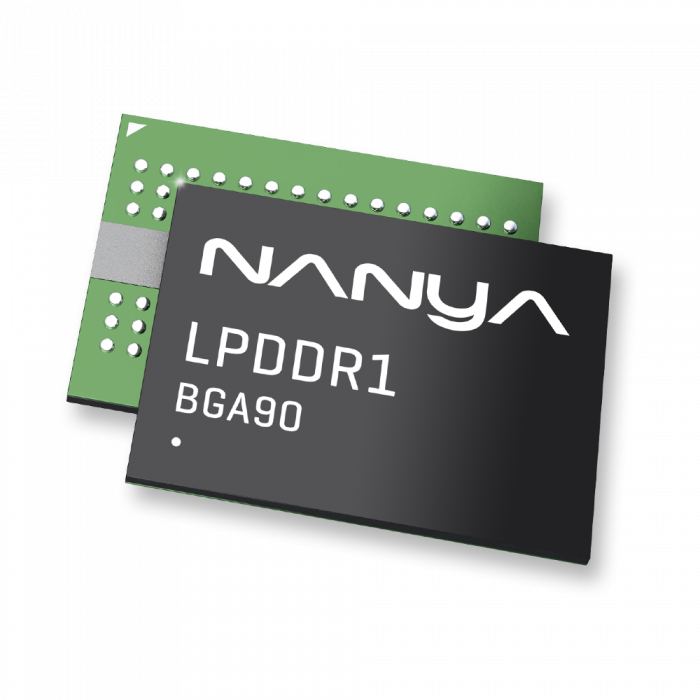

The NT6DM16M32BC-T1 is a LPDDR1 DRAM memory manufactured by Nanya made for an operating temperature of -25 to 85°C TA. It has a memory-capacity of 512Mb and is organized as 16Mx32 coming in a RoHS-compliant BGA 90 ball package. The data-rate is specified with 400 MT/s reflecting a max clock-speed of 200 MHz and a minimum clock cycle time of 5ns. The product is End of Life (EOL) and not re-orderable. Please contact us to receive our recommendations for replacement parts or newer versions.
Please contact us to request a quote or free samples.
