Nanya NT6TL128F64AR-G1
Memphis is a specialized memory-distributor carrying over 20 manufacturers including Samsung, Nanya, Hynix and many more. See our full linecard.
With 16 sales offices around the world and three warehouses, Memphis supplies all kinds of memory components such as
DRAM, SRAM, NOR/NAND Flash, eMMC as well as memory modules, SSDs and Flash-cards.
Please contact us for any demands related to memory!
Leadtime
in stock
in Stock
no
Status
active
Manufacturer
Nanya
Technology
LPDDR2
Capacity
8Gb
Organization
128Mx64
Bus-Width
x64
Package
BGA QDP
Pin/Ball Count
216
Voltage
1.2V
Min. Cycle Time
2.5ns
Max. Clock-Speed
400 MHz
Max. Data-Rate
800 MT/s
Temperature Range
-25 to 105°C TC
Automotive
No
RoHS-Compliant
Yes
HTN Code
85423239
ECCN Code
EAR99

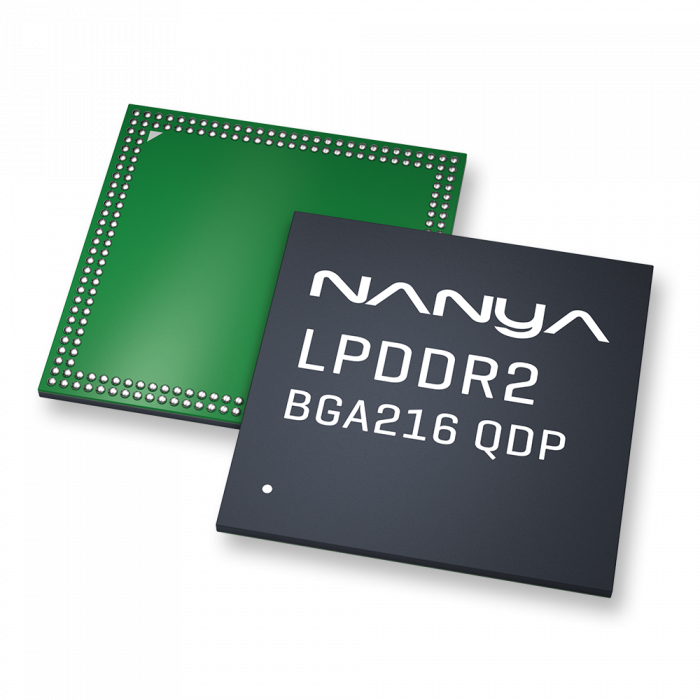

The NT6TL128F64AR-G1 is a LPDDR2 DRAM memory manufactured by Nanya made for an operating temperature of -25 to 105°C TC. It has a memory-capacity of 8Gb and is organized as 128Mx64 coming in a RoHS-compliant BGA QDP 216 Pins package. The data-rate is specified with 800 MT/s reflecting a max clock-speed of 400 MHz and a minimum clock cycle time of 2.5ns. The product is active and can be ordered from Memphis at any time.
Please contact us to request a quote or free samples.
