Nanya NT6TL64M32BQ-G1
Memphis is a specialized memory-distributor carrying over 20 manufacturers including Samsung, Nanya, Hynix and many more. See our full linecard.
With 16 sales offices around the world and three warehouses, Memphis supplies all kinds of memory components such as
DRAM, SRAM, NOR/NAND Flash, eMMC as well as memory modules, SSDs and Flash-cards.
Please contact us for any demands related to memory!
Leadtime
in stock
in Stock
no
Status
EOL
Manufacturer
Nanya
Technology
LPDDR2
Capacity
2Gb
Organization
64Mx32
Bus-Width
x32
Package
BGA
Pin/Ball Count
168
Voltage
1.2V
Min. Cycle Time
2.5ns
Max. Clock-Speed
400 MHz
Max. Data-Rate
800 MT/s
Temperature Range
-25 to 105°C TC
Automotive
No
RoHS-Compliant
Yes
HTN Code
85423239
ECCN Code
EAR99
SPQ Reel
1000 pcs

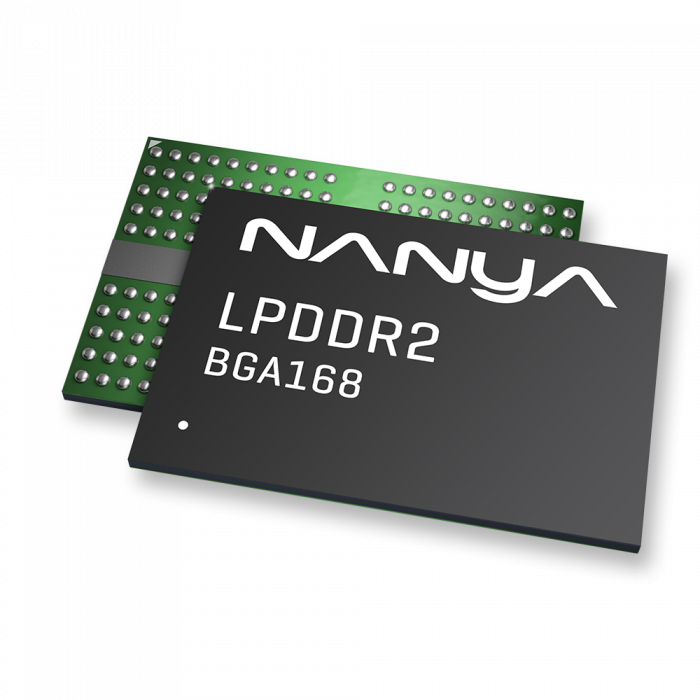

The NT6TL64M32BQ-G1 is a LPDDR2 DRAM memory manufactured by Nanya made for an operating temperature of -25 to 105°C TC. It has a memory-capacity of 2Gb and is organized as 64Mx32 coming in a RoHS-compliant BGA 168 ball package. The data-rate is specified with 800 MT/s reflecting a max clock-speed of 400 MHz and a minimum clock cycle time of 2.5ns. The product is End of Life (EOL) and not re-orderable. Please contact us to receive our recommendations for replacement parts or newer versions.
Please contact us to request a quote or free samples.
